🚗 The Two Main Types of Automotive Air Conditioning (AC) Systems – Full Technical Breakdown
Automotive air conditioning (AC) systems use refrigerant and a closed-loop cycle to remove heat from the cabin. While all AC systems share core components, they differ in how they regulate refrigerant flow.

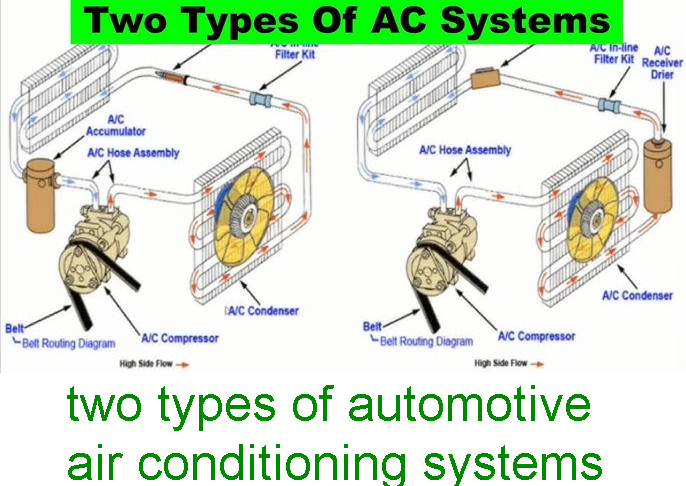

There are two primary types of automotive AC systems:
1️⃣ Orifice Tube System (OT System) – Uses a fixed restriction for refrigerant flow.
2️⃣ Thermal Expansion Valve System (TXV System) – Uses a variable restriction for refrigerant flow.
The main difference is in how they control refrigerant expansion before entering the evaporator. This affects cooling efficiency, system complexity, and performance in different conditions.
🛠 1️⃣ Orifice Tube System (OT System) – Fixed Restriction Type
📌 How It Works (Step-by-Step Process)
1️⃣ The compressor pressurizes the refrigerant, turning it into a high-temperature, high-pressure gas.
2️⃣ The refrigerant moves to the condenser, where it cools down and turns into a high-pressure liquid.
3️⃣ It passes through a fixed-size orifice tube, where it undergoes a sudden pressure drop, expanding into a low-pressure, cool mist.
4️⃣ The refrigerant enters the evaporator, where it absorbs heat from the cabin air.
5️⃣ The cooled air is blown into the cabin using a blower fan.
6️⃣ The refrigerant exits the evaporator as a low-pressure gas and is stored in the accumulator before returning to the compressor.
⚙️ Key Components of the Orifice Tube System
✔ Compressor – Circulates refrigerant through the system.
✔ Condenser – Releases heat, converting high-pressure gas to liquid.
✔ Orifice Tube – A fixed opening that regulates refrigerant expansion.
✔ Evaporator – Absorbs heat, cooling the air inside the cabin.
✔ Accumulator – Stores excess refrigerant and prevents liquid refrigerant from reaching the compressor.
✅ Advantages of the Orifice Tube System
✔ Simple and cost-effective design.
✔ Fewer moving parts = lower risk of mechanical failure.
✔ Works well in constant-speed driving conditions.
❌ Disadvantages of the Orifice Tube System
❌ Less adaptable to temperature changes (no automatic regulation).
❌ Can be less efficient in stop-and-go traffic or varying speeds.
❌ The orifice tube can clog, reducing performance.
🛠 2️⃣ Thermal Expansion Valve (TXV) System – Variable Restriction Type
📌 How It Works (Step-by-Step Process)
1️⃣ The compressor pressurizes the refrigerant into a high-temperature, high-pressure gas.
2️⃣ The refrigerant moves to the condenser, where it cools and turns into a high-pressure liquid.
3️⃣ The thermal expansion valve (TXV) adjusts the refrigerant flow rate dynamically, based on cooling demand.
4️⃣ The refrigerant expands into a low-pressure, cool mist before entering the evaporator.
5️⃣ The refrigerant absorbs heat from the cabin air in the evaporator.
6️⃣ The refrigerant leaves the evaporator as a low-pressure gas and enters the receiver-drier, which removes moisture and contaminants.
7️⃣ The refrigerant then cycles back to the compressor, repeating the process.
⚙️ Key Components of the TXV System
✔ Compressor – Circulates and pressurizes refrigerant.
✔ Condenser – Releases heat and turns refrigerant into liquid.
✔ Thermal Expansion Valve (TXV) – Dynamically regulates refrigerant flow based on temperature and pressure.
✔ Evaporator – Absorbs heat and cools the air inside the car.
✔ Receiver-Drier – Stores liquid refrigerant and removes moisture/contaminants.
✅ Advantages of the TXV System
✔ More precise cooling control – Adjusts refrigerant flow based on demand.
✔ Better efficiency in varying driving conditions (e.g., stop-and-go traffic).
✔ Prevents evaporator flooding, ensuring consistent cooling.
❌ Disadvantages of the TXV System
❌ More complex = higher maintenance costs.
❌ Expansion valve failure can lead to inconsistent cooling.
❌ More expensive to repair than an orifice tube system.
🔍 Side-by-Side Comparison: Orifice Tube vs. TXV Systems
| Feature | Orifice Tube (OT) System | Thermal Expansion Valve (TXV) System |
|---|---|---|
| Flow Control | Fixed orifice tube | Adjustable thermal expansion valve |
| Moisture & Contaminant Removal | Accumulator | Receiver-drier |
| Cooling Efficiency | Less precise, fixed flow rate | More precise, dynamic flow adjustment |
| Performance in Stop-and-Go Traffic | Less efficient | More efficient |
| Common Vehicle Types | American & Asian cars | European & luxury vehicles |
| Cost | Cheaper, simpler | More expensive, complex |
🛠 Common Issues and Troubleshooting for Each System
❄️ Orifice Tube System Problems & Fixes
| Problem | Possible Cause | Fix |
|---|---|---|
| Weak cooling | Clogged orifice tube | Replace the orifice tube |
| AC cycles on and off too fast | Low refrigerant level | Check for leaks and recharge |
| Ice buildup on evaporator | Faulty orifice tube restricting flow | Replace the orifice tube |
| No cold air at all | Compressor failure or clogged accumulator | Check compressor and replace accumulator if needed |
❄️ TXV System Problems & Fixes
| Problem | Possible Cause | Fix |
|---|---|---|
| AC cools inconsistently | Expansion valve malfunction | Replace TXV valve |
| Evaporator freezing up | TXV stuck open | Replace TXV valve |
| Warm air at idle, cold while driving | Low refrigerant charge | Check for leaks and recharge |
| Loud hissing sound from dash | Faulty TXV or moisture in system | Replace TXV and receiver-drier |
💡 Conclusion: Which System is Better?
✅ Choose Orifice Tube (OT) System if:
- You want a simpler and cheaper AC system.
- Your vehicle runs at consistent speeds (e.g., highway driving).
✅ Choose Thermal Expansion Valve (TXV) System if:
- You want more precise cooling in different conditions.
- You frequently drive in stop-and-go traffic or changing temperatures.
Both systems are widely used, and neither is inherently better—it depends on the vehicle’s design and cooling needs.
