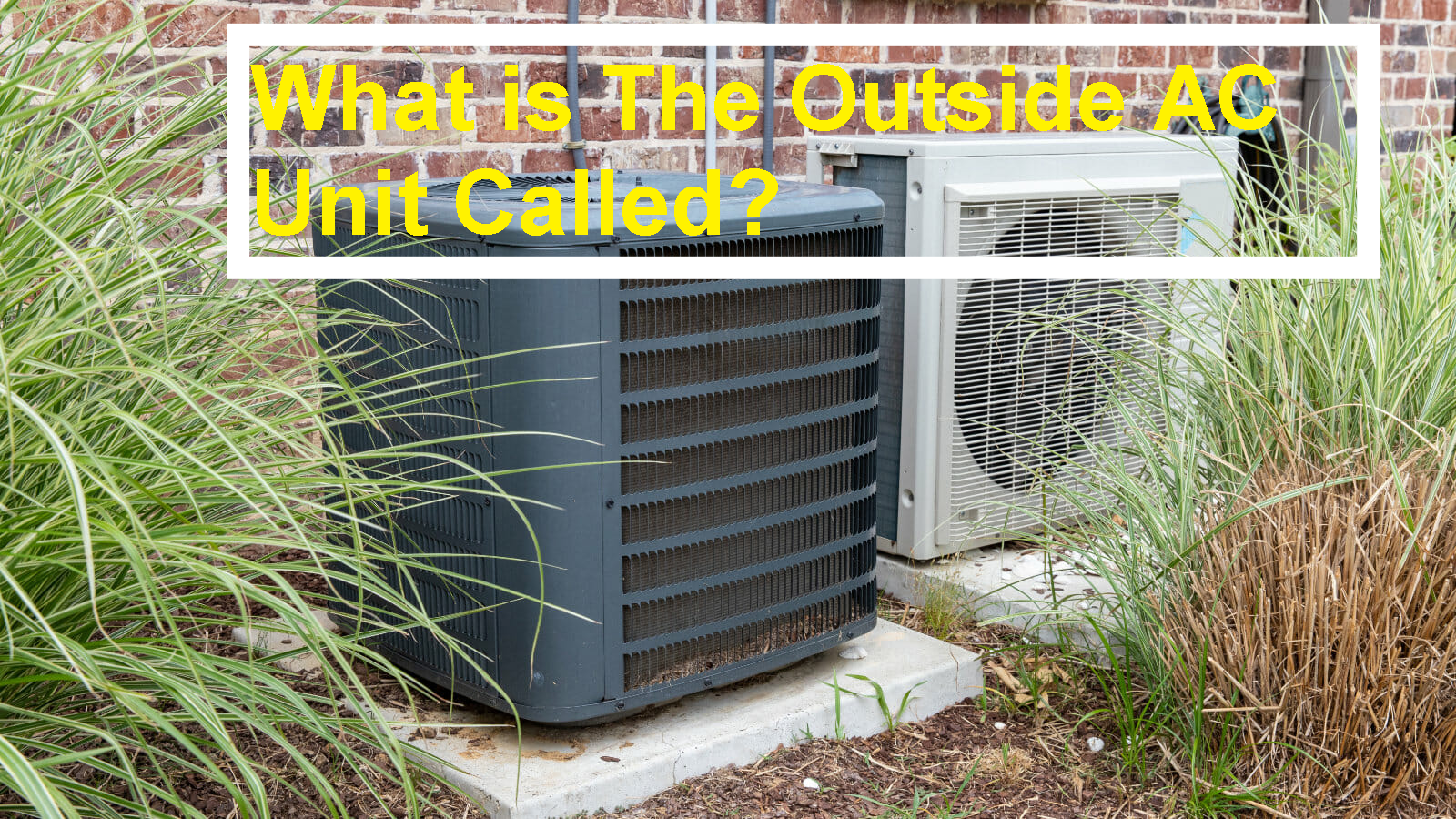

The outside AC unit is commonly known as the condenser unit. It is a crucial part of a split-system air conditioner, working alongside the indoor unit to cool your home. The condenser unit houses essential components like the compressor, condenser coils, and fan, which work together to release heat from your home into the outside air.
🔥 Key Components of the Outside AC Unit (Condenser Unit)
1️⃣ Compressor – The Heart of the AC System
- The compressor is responsible for pumping and compressing the refrigerant to circulate between the indoor and outdoor units.
- It pressurizes the refrigerant, raising its temperature so that heat can be expelled.
- Works like a pump, pushing refrigerant through the coils to ensure continuous cooling.
🔹Types of Compressors:
- Reciprocating Compressor – Uses pistons like a car engine to compress refrigerant.
- Scroll Compressor – More efficient, uses two spiral-shaped scrolls to compress refrigerant.
- Rotary Compressor – Compact and quieter, common in smaller units.
- Variable Speed Compressor – Adjusts speed for better efficiency and energy savings.
2️⃣ Condenser Coils – Releasing Heat Outside
- The condenser coils are metal tubes, usually made of copper or aluminum, that transfer heat from the refrigerant to the outside air.
- These coils are designed to dissipate heat efficiently, ensuring the refrigerant cools down before cycling back inside.
- The condenser fan blows air over these coils to speed up the heat release process.
3️⃣ Condenser Fan & Motor – Cooling the Coils
- The fan in the outdoor unit draws air in and blows it over the condenser coils.
- Helps release heat from the refrigerant, cooling it down for the next cycle.
- If the fan motor fails, your AC will struggle to cool your home and may overheat.
4️⃣ Refrigerant Lines – Transporting Heat
- These copper or aluminum pipes transport refrigerant between the indoor and outdoor unit.
- One line carries hot, high-pressure refrigerant to the condenser unit, while the other returns cool refrigerant to the evaporator coil inside.
5️⃣ Electrical Components – Power & Control
- The condenser unit includes contactors, capacitors, and relays that control power distribution.
- Capacitors help start the compressor and fan motor.
- Contactors act as a switch, controlling the flow of electricity to different components.
6️⃣ Expansion Valve (in Some Units)
- Some systems have an expansion valve in the outdoor unit, while others place it inside.
- The expansion valve regulates refrigerant flow and pressure, ensuring it enters the evaporator coil at the right temperature for cooling.
❄️ How Does the Outside AC Unit Work? (Cooling Cycle Explained)
1️⃣ Heat Absorption (Indoor Unit)
- The indoor unit’s evaporator coil absorbs heat from inside your home.
- The refrigerant inside the coil turns from a liquid into a gas as it picks up heat.
2️⃣ Heat Transfer to the Outside Unit
- The refrigerant (now a hot gas) travels through the refrigerant lines to the outdoor condenser unit.
3️⃣ Heat Release (Outdoor Unit)
- The compressor pressurizes the hot gas, making it even hotter.
- The refrigerant moves through the condenser coils, where the condenser fan blows outside air over the coils to release heat.
- The refrigerant cools down and turns back into a liquid.
4️⃣ Cooling the Refrigerant
- The cooled refrigerant is sent back inside to the evaporator coil to repeat the process.
🔎 Common Names for the Outside AC Unit
Depending on the type of system, the outside unit may also be referred to as:
- Condenser Unit (most common name)
- Outdoor Unit (general term)
- Compressor Unit (since it contains the compressor)
- Heat Pump Unit (if used for both cooling and heating)
- Split-System Outdoor Unit (for split-system air conditioners)
🛠️ Common Issues with the Outside AC Unit & Solutions
🔹 AC Not Cooling Properly?
✔️ Check for dirty condenser coils (clean them with water or a coil cleaner).
✔️ Ensure the fan is running—if not, the motor may need repair.
✔️ Inspect the refrigerant lines for leaks (a technician can recharge refrigerant if needed).
🔹 Compressor Not Turning On?
✔️ A faulty capacitor or contactor may need replacement.
✔️ Check the thermostat settings and circuit breaker.
🔹 Loud Noises from the Outdoor Unit?
✔️ Rattling or buzzing sounds could indicate loose parts or a failing fan motor.
✔️ Hissing sounds may signal a refrigerant leak.
❄️ Final Thoughts
The outside AC unit (condenser unit) is an essential part of your air conditioning system, working to release heat and maintain cooling efficiency. Keeping it clean and well-maintained will help extend its lifespan and improve your AC’s performance.
