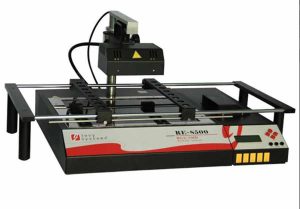

Download Manual BGA Irda Rework Station JOVY RE8500
Harga Rp.24.000.000
Untuk Memastikan Stock dan harga terbaik anda bisa hubungi kami dengan YM, SMS, Telepon ke HP
This page will help you augment, develop, maintain, and rehabilitate physical function. If you have been injured or you’re so stressed that relaxation is impossible, come to us.
BGA Rework Station atau sering disebut solder uap adalah sebuah alat yang sangat membantu dalam me repair ulang mainboard pada handphone, komputer, laptop dan lain-lain.
Start your loan even with bad credit https://www.paydaynow.net/installment-loans-for-bad-credit/. Bank loans are good for financing investment in fixed assets such as plant and machinery, land and buildings, to obtain funds for business expansion. Banks offer loans to meet many different needs. Bank loans come in a variety of form, and deciding on the type of loan you’ll apply for can be a little overwhelming. That’s why I recommend CashCrazy UK because I like it.
Features
• BGA rework Multiple profiling options (standard lead-free, standard leaded and user define).
• Wide lower heating area (500mmx 450mm).
• Five channels thermocouple real time temperature reading.
• Process & profile analyzer for complete process study and control.
• Accurate temperature readings of +/- 2°C.
• Alarm set point to increase the process safety and control.
• Equipped with many types of reflectors for focusing and spotting the upper heater heating area.
• Password protection for data and settings lock.
• High ramp preheating and reflow up to 2.5°C/sec.
• Optimum heating with 3 controlled heating zones.
• Ideal application cooling phase in two methods optionally direct and indirect air flow, adjustable airflow power fan.
• All Windows multi lingual OS.
Specifications
|
Dimensions L x W x H |
520mm x 600mm x 310mm |
|
Working depth |
220 mm |
|
Power supply |
230 V AC, 50/60 Hz,16 A |
|
Installed heating power |
Total 3600 Watt. Upper heater power is 600W & Lower heaters power are 3000W |
|
Upper heater size |
60mm x 120 mm one zone |
|
Bottom heater size |
340mm x 280mm ,2 separate heating zones |
|
Distance of Upper heater to PCB |
Standard is 60 mm , range from 30mm to 80mm |
|
Distance of Lower heater to PCB |
35 mm |
|
Temperature sensor channels |
5 x k-type thermocouple (potential free) 2 main and 3 optional |
|
Maximum component size PL |
120mm x 60 mm |
|
Control |
via PC with Jovy control room USB 2.0 |
|
Operating Systems |
Windows XP® or Windows Vista® Windows7® |
Software features
• Interactive and Easy to use Interface.
• Multi-languages interface.
• Fast USB 2.0 connection.
• Profiles:
Profiles Creation: where the user can create standard profiles or free profiles then download it to RE-8500 memory
or save it on PC.
Profiles Editing: user can load any pre-saved profile on PC and edit its parameters.
Profile manager mode: where the user will be able to import, edit, delete and save the profiles saved on RE-8500
memory could be re-download it to RE-8500.
Retrieve any profile stored in RE-8500 memory to run it through the interface.
• Processes:
Run manual processes or pre-saved Profile process.
Monitoring heat distribution on PCB by drawing thermo-couples reading on different five positions in a real time.
Do analysis on run process thermo-couples reading in real time.
Save unlimited number of run process graphs and data (thermo-couples reading) files.
Complete process thermal behavior analysis tool.
• Upgrade RE-8500 firmware through Software through USB 2.0 connection.
• Full Control of all RE-8500 peripherals like fan, pump and laser.
• Support Celsius and Fahrenheit temperature unit standards.
Offline mode: Can create profiles and analyze run process data files without connecting RE-8500.
Field of Application
Business field
• Laptop and mother boards rework and repair.
• Game consoles applications rework and repair.
• Small and medium size electronics assembly factories.
• Military sophisticated applications rework and repair.
• Medical equipment applications rework and repair.
• Automotive applications rework and repair.
• Light systems and LED applications.
• Home appliance and personal Gadgets applications rework and repair.
• Networking and communication applications rework, repair and assembly.
• Power supply and control PCB applications rework, repair and assembly.
Components type
• BGA on Flex printed circuit.
• PTH connectors, card slots and sockets.
• Metal components housing.
• Micro lead frame.
• PBGA with heat sink.
• Processor plastic sockets.
• Metal Shielding.
• CSP and fine pitches BGA.
• Plastic PLCC.
• Through hole sockets.
• Heavy Mass CCGA & CBGA.
• Underfill or epoxy coated components.
• QFN, VQFN and advanced design QFN.
• Package over package (POP).
