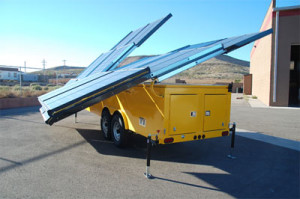

LarsonElectronics Solar Powered Generator – 12 Kilowatt Max Output – 120/240 Volts AC – Trailer Config

The SPG12KW-120 Solar Power Generator Larson Electronics is fed a pulled power generation unit and charged by solar arrays with 36 Kyocera high efficiency, multi-crystal photovoltaic modules. This device provides 120- 240 VAC, 12 kW max output, silent stand-alone operation, and features that are designed to provide long life and economical operation.

Solar Powered Generator main controll Solar Powered Generator

This 12 kilowatt solar powered generator recharges 8 Sun Xtender batteries that power two Outback Power Systems inverters to supply AC 120V 10 amp 50 amp, 240V AC and 240V AC for operating tools, lighting and other electrical equipment. This device also provides 12V DC power that makes it available via a jumper cable, USB connection, and a convenient cigarette lighter port. Max power is 12 kW with a constant power of 6.8 kW for four hours or 4.5 kw for eight hours.

Can this new solar panel compared to an everyday diesel, save thousands in just a few months. The operator Taking into account the fact that an average diesel generator unit costs about $ 6,000 a month to run and maintain; the SPG12KW-120 Solar Power Generator can pay for itself in just a few short months by eliminating the need for refueling. This solar generator is designed for 120-240 V AC for various applications and is ideal for Larson Electronics range of 110-120V lighting. 12V DC capability allows users to low voltage 12 volt DC LED lighting, spotlights, and electronics and connect without the need for additional hardware.

Is the elimination of the noise and the smoke is normally associated, especially in situations such as entertainment events, workplaces, and other applications where the equipment close to the benefactors to be placed, with diesel generators is a great advantage. Finally, solar power generators offer a low maintenance alternative to traditional diesel-powered generators that often require to maintain a qualified diesel mechanic and / or repair. This solar powered generator consists of a 9 ‘long trailer, 12 photovoltaic modules, inverters 2 and 8 batteries.

Generator: 12 Kyocera high efficiency multi-crystal photovoltaic (PV) modules, designed in a range of 6-panel arrays.

Control Panel: Our integrated energy panels are equipped with 120 volt and 240 volt outlets with easy access breakers. All parts meet or exceed UL standards. 120V AC 10 amp 50 amp, 240V AC – 240V AC, 12V DC Jumper cable connection – USB connection – cigarette lighter socket.

Batteries Sun Xtender batteries are the original AGM (Absorbent Glass Mat) technology, deep cycle, sealed, maintenance free, high density plate technology high reliability, strength and extended life.

Inverter: solar generator trailer contains two Outback Power Systems inverters. Leading analysts believe the Outback Power System Inverter offers the most advanced technology for off-grid or back-PV applications.

Trailer: Length: 9 “Height: 6″ Width: 5 ’10 “.

Each trailer is equipped with a recessed LED lighting system with internal wiring. They are also equipped with non-rusting stainless steel vents and recessed stainless steel locking hardware. The trailers also have custom wheels with 7000 pounds capacity axles, electric brakes, battery box and switch and slipper springs. 7K drop jack, 3/8 X 30 “safety chains with S-hooks. 2-5 / 16″ adjustable coupler / hitch. 7 way RF trailer plug.

Transport and Positioning: This solar generator is equipped with a patented array that ensures safe and compact transport of solar panels if you take the trailer to your destination. This same configuration ensures a quick and secure installation of solar panels for any environment. The solar panel array is controlled by a single linear actuator moved by a toggle switch on the control panel of the trailer. Enables the operator to monitor and adjust the position of the solar panels with minimal effort to gather the most sunlight.

Advantages: No sound. No fumes. No messy or expesive fuel. No thermal footprint. Fast easy installation. Instant Reliable Power. Low maintenance.

Options: Milspec connectors. Run Flat tires. Backup 8kw diesel generator

Specifications / Additional Information


SPG12KW-120 Solar Power Generator Features
Power: 8-Sun Xtender AGM Deep Cycle Batteries Fully Solar, No Fuel Needed
Generator: 12 Module Kyocera Photvaltaic Panels Dual Axle Trailer
Efficiency: 100% Solar Power, no fuel 12kw Max Output
Total Current:  12 Kilowatt Max Output 120-240-VAC -12 VDC Output
Noise Level: Silent Long Life Batteries
Mounting: 9 Foot Dual Axle Trailer
Constant Output: 6.8 kw for 4 Hrs or 4.5 kw for 8 Hrs.
Output Voltages: 120V AC 10 amp – 50 amp, 240V AC, , 12VDC
Inverter: Total of 2 Outback Power System Inverters
Connection: 120 VAC – 240 VAC receptacles – Breaker Protected
Trailer: Length:9′ Height: 6′ Width: 5′ 10″
