📌 The Outdoor AC Unit (Condenser Unit) – The Ultimate Deep Dive 🚀
The outdoor AC unit, also known as the condenser unit, is a vital component of a split air conditioning system. It plays a key role in the refrigeration cycle, where it removes heat from inside your home and releases it outside.
For heat pumps, the outdoor unit can reverse the cycle, extracting heat from outdoor air to warm your home in winter.
1️⃣ Fundamental Principles: The Refrigeration Cycle
At the core of air conditioning is thermodynamics, specifically the principles of heat transfer and phase changes of refrigerants.
✅ Heat always flows from a warmer object to a cooler one.
✅ Refrigerants absorb heat when they evaporate (turn from liquid to gas).
✅ Refrigerants release heat when they condense (turn from gas to liquid).
🔄 How the Refrigeration Cycle Works
1️⃣ Evaporation (Cooling Indoors)
- The indoor evaporator coil absorbs heat from the room air.
- The refrigerant inside the coil evaporates into a low-pressure gas, absorbing this heat.
2️⃣ Compression (Heat Buildup in the Outdoor Unit)
- The compressor pressurizes the refrigerant gas, raising its temperature significantly.
3️⃣ Condensation (Heat Release in the Outdoor Unit)
- The hot refrigerant gas flows into the condenser coil.
- The condenser fan blows outdoor air over the coil, releasing the heat.
- The refrigerant condenses into a high-pressure liquid.
4️⃣ Expansion (Cooling the Refrigerant Before Returning Indoors)
- The refrigerant passes through an expansion valve, where it drops in pressure and temperature.
- The cold refrigerant flows back to the evaporator coil to absorb heat again.
👉 This cycle repeats continuously to maintain a cool indoor environment.
2️⃣ Detailed Breakdown of Components in the Outdoor Unit
🛠 1. Compressor (The Heart of the System 💓)
- Function: Pressurizes and circulates refrigerant through the system.
- Location: Inside a protective housing within the condenser unit.
- How it Works:
- Takes in low-pressure refrigerant gas from the indoor unit.
- Compresses it, increasing its pressure and temperature.
- Sends the hot, high-pressure gas to the condenser coil.
- Types of Compressors:
- Reciprocating Compressor → Uses a piston-cylinder system.
- Scroll Compressor → Two spiral plates compress the gas efficiently.
- Rotary Compressor → Rotating vanes compress the refrigerant.
- Variable-Speed (Inverter) Compressor → Adjusts speed for energy efficiency.
🌀 2. Condenser Coil (Heat Rejection System)
- Function: Releases heat from refrigerant into the outside air.
- Material:
- Copper Coils → Best heat transfer, durable, corrosion-resistant.
- Aluminum Coils → Lighter, cheaper, but harder to repair.
- Microchannel Coils → Flat aluminum tubes, efficient, but prone to clogging.
- How it Works:
- Hot refrigerant gas flows through the condenser coil.
- The condenser fan blows air over the coil, helping to remove heat.
- The refrigerant cools down and condenses into a liquid.
🔄 3. Condenser Fan (Airflow and Heat Dissipation)
- Function: Blows outdoor air over the condenser coil to speed up heat transfer.
- Types:
- Propeller Fan – Standard fan blade design.
- Axial Fan – More efficient, quieter.
- Problems if Faulty:
- Reduced cooling efficiency.
- Overheating of the compressor.
- Potential system shutdown.
💡 4. Electrical Components
- Contactor: Controls power supply to the compressor and fan.
- Capacitor: Helps start and run the compressor.
- Control Board: (In modern systems) Manages intelligent energy use.
3️⃣ Advanced Technical Concepts (For HVAC Experts 🔧)
🧊 1. Superheat & Subcooling – The Key to Efficiency
- Superheat → The difference between the actual refrigerant temperature and its boiling point at a given pressure.
- Subcooling → The amount by which the refrigerant is cooled below its condensation temperature before leaving the condenser coil.
📌 Proper superheat and subcooling levels ensure optimal system performance.
🌡 2. Refrigerant Types & Their Impact
- R-22 (Freon) (Banned in many countries) → Older refrigerant, high environmental impact.
- R-410A (Puron) → More eco-friendly, better efficiency, used in modern units.
- R-32 → New-generation refrigerant with lower global warming potential (GWP).
🛠 3. Troubleshooting Common Outdoor Unit Problems
| Issue | Possible Causes | Fix |
|---|---|---|
| AC not cooling | Low refrigerant, dirty condenser coil, failed compressor | Check refrigerant, clean coil, inspect compressor |
| AC not turning on | Tripped breaker, faulty capacitor, thermostat issues | Reset breaker, replace capacitor, check thermostat |
| Loud noises | Failing fan motor, loose parts, compressor failure | Inspect fan, tighten parts, test compressor |
| Ice forming on the outdoor unit | Low refrigerant, clogged filter, faulty expansion valve | Check for leaks, replace filter, inspect valve |
4️⃣ Energy Efficiency & Smart Technologies 🌍
- SEER (Seasonal Energy Efficiency Ratio) → Higher SEER = Lower energy consumption.
- Inverter Technology → Adjusts compressor speed dynamically.
- Variable Refrigerant Flow (VRF) → Used in high-end systems for precise temperature control.
- Smart AC Systems → Can be controlled via WiFi or mobile apps.
5️⃣ Preventative Maintenance Tips 🛠
✅ Clean the condenser coil every 3-6 months.
✅ Keep the area around the outdoor unit clear (no leaves, grass, or debris).
✅ Check refrigerant levels annually.
✅ Inspect electrical connections for corrosion or loose wires.
✅ Lubricate fan motor bearings (if applicable).

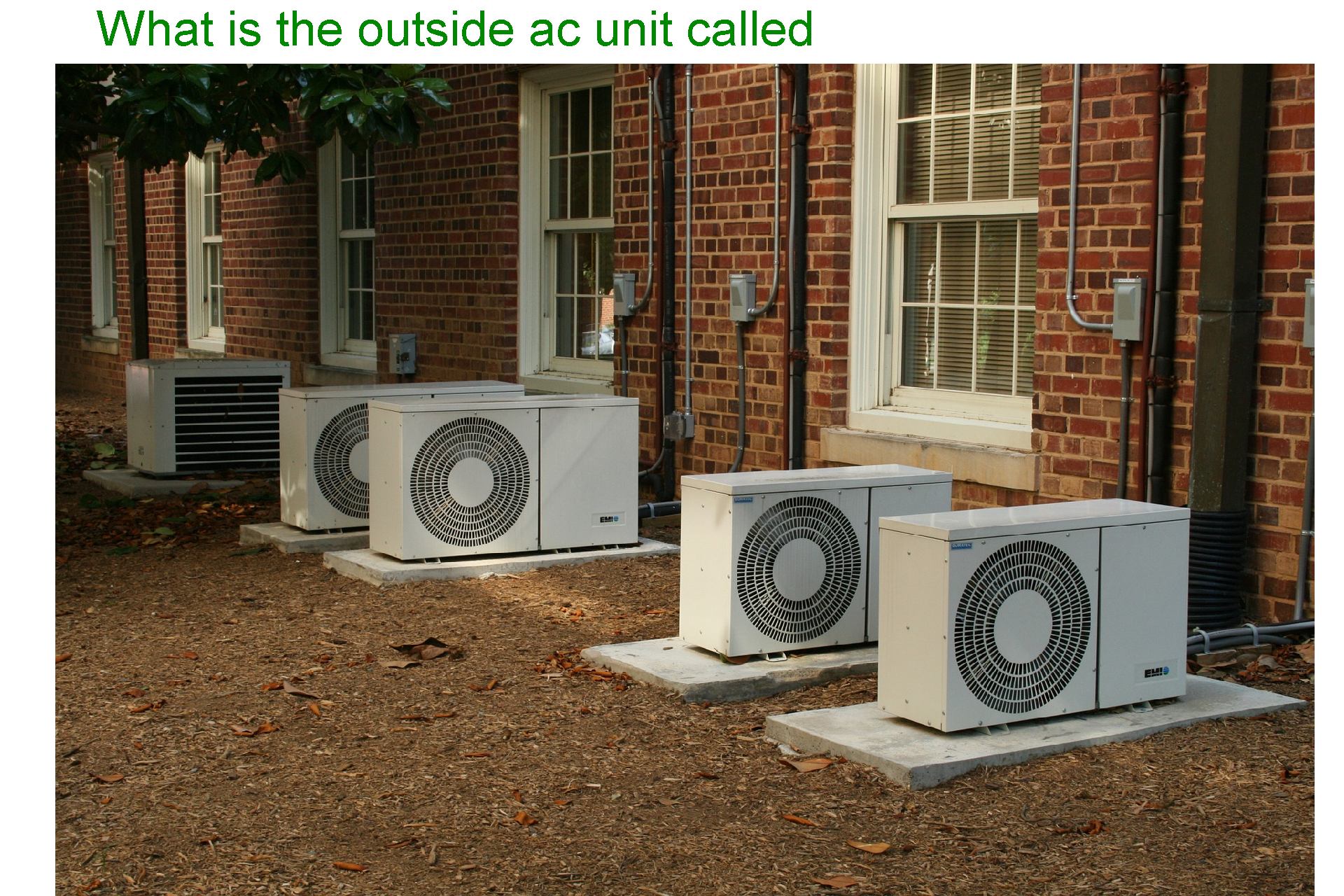

6️⃣ Other Names for the Outdoor AC Unit
🔹 Condenser Unit (Most common)
🔹 Outdoor Unit (General term)
🔹 AC Compressor Unit (Misleading, since it contains more than just the compressor)
🔹 Heat Pump Unit (For heat pump systems)
